Description

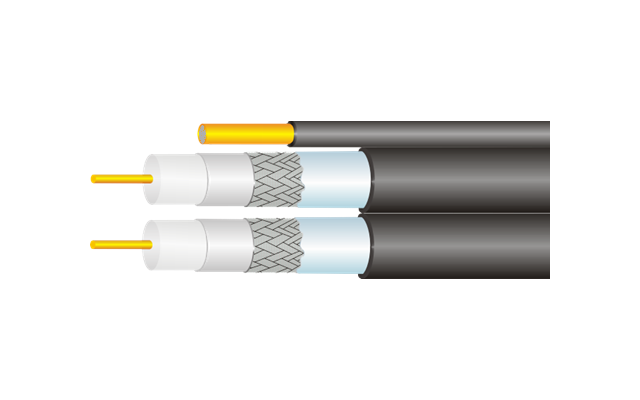

Dual RG-6 Coaxial Cable – 3 GHz – Flooded with Ground

Solid Copper Center Conductors

Closed-Cell foam polyethylene (PE) dielectric provides high velocity of propagation

Dual Shield: Bonded Aluminum-Polyester-Aluminum (APA) Foil + 60% Braid

Black Polyethylene Jacket

Amorphous Polypropylene (APD) Flooding compound

Hard Drawn Copper-clad Steel Ground Conductor: 17 AWG

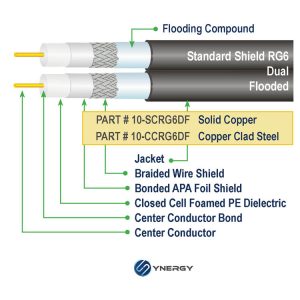

Construction and Materials

1. Copper-Clad Steel Center Conductors – 0.04″ (1.02 mm) Hard-drawn copper-clad steel (CCS).

2. Center Conductor Bond – Proprietary, clean stripping.polymer is utilized to block moisture migration.

3. Dielectric – Unique mix of polyethylene providing mechanically stable, closed cell foam with excellent velocity of propagation charatoristics.

4. First Outer Conductor – Excellent RF shielding before and after flexure is provided by 100% coverage with an aluminum-polyester aluminum (APA) tape securely bonded to the dielectric core.

5. Second Outer Conductor – A fine wire aluminum braid wire: 34 AWG, 60% Braid coverage.

6. Flooding Compound: Amorphous Polypropylene (APD). A flowing compound able to seal small ruptures of the jacket.

7. Jacket – Black Polyethylene

8. Ground Conductor: 17 AWG Hard Drawn Copper-clad Steel
